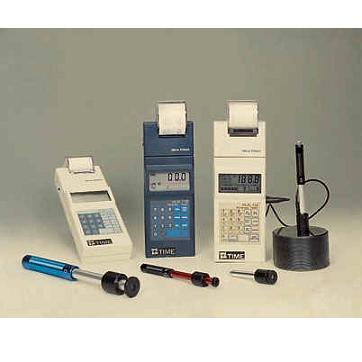

HARDNESS TESTER HLN-11

HLN-11

Brief

HLN-11 is an advanced hand-held hardness distinguished by its high accuracy, wide measuring range, and simplicity of operation. It is suitable for testing on various conditions and environments.

Typical Applications

  • In-situ testing of individual parts, or components in assembled machines
  • Mould surface of a die
  • Heavy components e.g. rolls for rolling mills, etc.
  • Quick analysis of pressure vessels, turbo-generator sets, etc.
  • Testing in a production line e.g. crank-shafts, cylinder blocks, etc.
  • Material identification

Functions Available

  • Display test results in all various hardness scales (HRB, HRC, HB, HV, HSD, HL)
  • Test in any angle, even up-side-down
  • Convert to Ultimate Tensile strength
  • Immediate cover between harness scales, and print-out of desired
  • Input of test number on date
  • Input print-out of material type, and test direction Print-out of test results via integral printer if needed
  • Battery low individual Protective carrying case complete with test block, supporting, cleaning brush, battery charger
  • Seven impact device available: D ,DC ,DL ,D+15 ,C ,E ,G

Technical Specification

  • Overall dimension: 270 x 86 x 47mm
  • Total weight: 650g(including impact device and printer)
  • Operating temperature: electronics: -10 to +45¡ÆC ; impact device:-20 to +120¡ÆC
  • Tolerance: ¡¾0.8%
  • U.T.S. Measuring range: 370-2000[10N/m]
