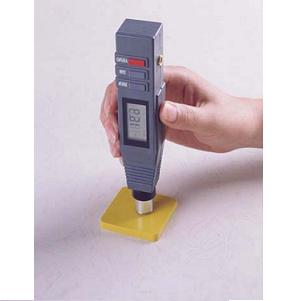

TH200 Shore Rubber Hardness Tester

Main function:

TH200 cancels and locks in the peak value, makes the average value calculation and under-voltage alarming.

The RS232 communication cable connector to be carried out with the machine can carry out the data communication with computer.

Automatically switch off

Measuring range: 0-100HA

Measurement deviation: within 20-90HA

HA < +1 grade

Technical Specifications

Test scales available Shore A
Standards  DIN53505,ASTM D2240
Result display  Hardness result, Average value, Max value (peak value lock), Battery indication
Result display resolution 0.1 unit
Data output RS-232
Statistics Total test, Highest hardness, Average
Features Automatic shut off, battery low alarming
Operating temperature 0 - 40¡ÆC
Power requirements 3 x 1.25V batteries(V357)
battery life 300Hours
Dimensions 145g

Standard delivery

  • Main unit
  • Batteries
  • Case
  • Manual
  • Time Certificate

Optional accessories

  • Data cable to pc
  • Operating stand with constant load THS-200S
