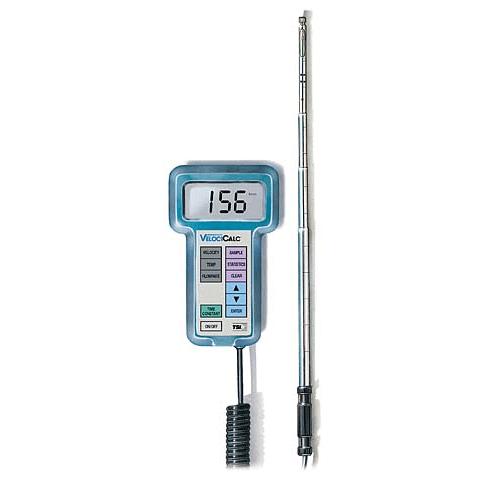

상품 상세보기 : Combo Units - TS100345 Air Velocity Meter

TSI's VelociCalc® Air Velocity Meters are easy to use from the first time you pick them up.

TSI's VelociCalc® Air Velocity Meters are easy to use from the first time you pick them up. The meters measure velocity and temperature, and with a few simple keystrokes they calculate flowrate, perform multi-value averaging, and determine minimum and maximum readings.

Features

Easy to read digital display
Variable time constant modes available for a steady display when measuring fluctuating flows
37 inch telescoping probe with etched length marks to make duct traverse measurements easier
Sampling function allows for easy recording of multiple measuring points
Statistics function can display average, maximum and minimum values, and the number of recorded samples
Flowrate feature allows for simple and quick calculations of volumetric flowrate when the user inputs the duct shape and size
Optional portable printer provides a hard copy documentation of your readings
NIST* traceable calibration certificate

Applications

HVAC duct measurements
Wind tunnel work
Filter face velocity measurements
Fume hood face velocity tests
Clean room studies
Indoor Air Quality tests

SPECIFICATIONS

Velocity
Range	0 to 6,000 ft/min (0 to 30 m/s)
Accuracy	3.0% of reading or ±3 ft/min (.015 m/s) whichever is greater
Temperature
Range	0 to 200°F (-17.8 to 93.3°C)
Resolution	0.1°F (0.1°C)
Accuracy	±0.5°F (±0.3°C)
Instrument Temperature Range (all models)
Operating (Electronics)	40 to 113°F (5 to 45°C)
Operating (Probe)	0 to 200°F (-17.8 to 93.3°C)
Storage	-22 to 194°F (-30 to 90°C)
Volumetric Flowrate (all models)
Range	0.2 to 2,700,000 ft³/min 0.1 to 195,000 l/s, 0.0424 to 702,000 m³/hr,
Duct Size
Range	1 to 100 inches in increments of 0.5 inches, 100 to 255 inches in increments of 1 inch (1 to 100 cm in increments of 0.5 cm, 100 to 255 cm in increments of 1 cm)
Averaging Capability	Up to 255 values each of velocity, temperature
Time Constant	Adjustable from 1 to 20 seconds
Printer Interface	Serial, Baud Rate 1200

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

TS100345

8345

VELOCICALC AIR VELOCITY METER W/TELESCOPIC PROBE

Yes

1,836,000

TS100345M

8345-M

AIR VEL METER W/ TELESCOPIC PROBE, METRIC

Yes

1,836,000

TS8346

8346

Air Velocity Meter, 0-6000 ft/mn with articulating probe

Yes

2,214,000

TS14519

8925

PORTABLE PRINTER WITH BUILT-IN RECHARGEABLE BATTERY PACK

Yes

853,200

Includes 115 VAC adapter/charger cable and 5 rolls of paper
