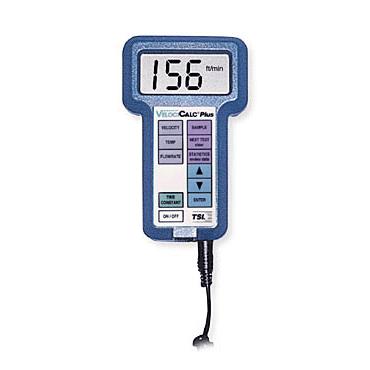

| VelociCalc®/VelociCalc Plus® Rotating Vane Anemometers accurately measure air velocity |
| VelociCalc® and VelociCalc Plus® Rotating Vane Anemometers accurately measure air velocity and temperature, calculate flowrate, perform averaging, and determine minimum and maximum readings. In addition, the Model 8324 provides both single point and continuous data logging capability. |
| |
|
Features |
- Wide velocity range of 50-6000 FPM (0.25 to 30 m/sec)
- Temperature range of 0° to 80°C
- 100 mm-diameter rotating vane head provides a reliable weighted average of velocity readings
- Sweep mode makes it easy to sweep across an area for one overall measurement
- Sampling function records multiple point measurements
- Statistics function displays average, maximum and minimum values, and the number of recorded samples
- Flowrate feature calculates volumetric flow when the user inputs the duct shape and size
- Variable time constant modes available for a steady display when measuring fluctuating flows
- Optional portable printer provides hard copy documentation of your readings
|
| |
|
Data Logging Features (Model 8324) |
- Data logging ability allows user to log 2849 samples with a time and date stamp
- Single point and continuous data logging modes to fit your application
- Data can be reviewed on-screen, printed, and downloaded to a computer spreadsheet program
- TSI downloading software permits easy transfer of data to a computer
|
| | | SPECIFICATIONS
|
Velocity Range |
0.25 to 30 m/s (50 to 6,000 ft/min) |
| Accuracy |
±1.0% of reading or ±0.015 m/s (±3 ft/min) whichever is greater |
| Temperature Range |
0 to 80.3°C (32 to 176°F) |
| Resolution |
0.1°C (0.1°F) |
| Accuracy |
±0.5°C (±1.0°F) |
| Instrument Temperature Range |
| Operating (electronics) |
5 to 45°C (40 to 113°F) |
| Operating (probe) |
0 to 80°C (32 to 176°F) |
| Storage |
-20 to 60°C (-4 to 140°F) |
| Volumetric Flowrate Range |
0 to 1,230,000 l/s, 0 to 4,360,000 m3 |
| (0 to 2,604,000 ft3/hr) |
| Duct Size Range |
1 to 635 cm in increments of 0.1 cm |
| (1 to 250 inches in increments of 0.1 inches) |
| Averaging Capability Range |
Up to 255 values each of velocity, temperature |
| Logging Capability (TS145403) |
Up to 2849 samples and 1,000 test ids |
| Intervals |
1, 2, 5, 10, 15, 20, 30 and 60 sec and 2, 5, 10, 15, 20, 30 and 60 min |
| Time Constant Intervals |
1, 2, 5, 10, 15, and 20 sec |
| External Meter Dimensions |
10 cm x 16.8 cm x 3.8 cm |
| (3.9 in. x 6.6 in. x 1.5 in.) |
| Vane Head Diameter |
100.0 mm (4 in.) |
| Meter Weight (with batteries) |
0.68 kg (1.5 lbs) |
| Display |
4-digit LCD, 15 mm (0.6 in.) digit height |
| Power |
Four AA-size batteries (included) or AC adapter (optional) |
| Printer Interface |
Serial |
| Baud Rate |
1200 |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| TS145401 |
|
8322 |
|
VANE ANEMOMETER |
|
Yes |
|
1,717,200 |
| TS145403 |
|
8324 |
|
VANE ANEMOMETER W/DATALOGGING |
|
Yes |
|
2,149,200 |
| TS14519 |
|
8925 |
|
PORTABLE PRINTER WITH BUILT-IN RECHARGEABLE BATTERY PACK |
|
Yes |
|
853,200
|
| Includes 115 VAC adapter/charger cable and 5 rolls of paper |
| TS145411 |
|
802140 |
|
ARTICULATING TELESCOPING HANDLE |
|
Yes |
|
324,000 | | |
|
|
 | |
 |
|
 |
|
