High quality measuring head, DIN class B for light flux measurement with Ulbricht globe photometer.

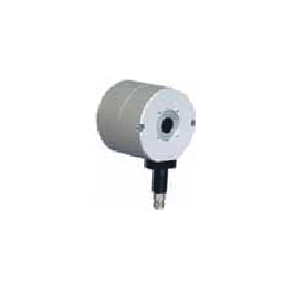

FLA603LSM4 Light Flux Probe Head


¡Ü High quality measuring head, DIN class B for light flux
measurement with Ulbricht globe photometer.
¡Ü Perfect coating of the globe with BaSO4 for diffuse reflectivity and spectrally neutral reflection quality.
¡Ü Suitable for cold light sources, and lamps with high colour temperature and almost monochromatic radiation (as in LEDs).
¡Ü Examples for applications:
Endoscopes, fiber optic bunches, light emitting diodes.


Technical Data:
Measuring range: 0.001 lm to 250 lm
Smallest resolution: 0.001 lm
Sensitivity: 20nA/lm
Acceptance angle: up to 90 ¡Æ
Accuracy: DIN quality class B
Nominal temperature: 24¡ÆC ¡¾2K
Humidity range: 10 to 90 % non-condensing
Operating temperature: max. 100¡ÆC inside globe
Inner diameter of globe: 50mm
Test opening: 12.7mm

Type:
FLA603LSM4 Light flux probe head with ALMEMO¢ç connecting cable 2m long and factory calibration certificate
